Let’s build a simple journey planner using SQL (part 2 of probably more than 2)

SELECT
    trip_id,
    stop_sequence,
    departure_time,
    name,
    platform,
    stop_id
FROM
    stop_time
INNER JOIN
    stop ON
        stop_id = stop.id
WHERE
    node_id = 21601 -- Nijmegen Heyendaal
    AND
    departure_time BETWEEN '2023-06-01 08:00:00' AND '2023-06-01 09:00:00'
ORDER BY
    departure_time

SELECT
    stop_time.trip_id,
    stop_time.stop_sequence,
    stop_time.arrival_time,
    stop.name,
    stop.platform,
    stop_time.stop_id
FROM
    stop_time
INNER JOIN
    stop ON
        stop_id = stop.id
INNER JOIN
    (
        -- These are the results from the previous query. We want to find out
        -- which of these trips take us to Nijmegen.
        SELECT 5010 AS trip_id, 8 AS stop_sequence
        UNION
        SELECT 2455 AS trip_id, 2 AS stop_sequence
        UNION
        SELECT 4639 AS trip_id, 12 AS stop_sequence
        UNION
        SELECT 684 AS trip_id, 2 AS stop_sequence
        UNION
        SELECT 1389 AS trip_id, 6 AS stop_sequence
        UNION
        SELECT 4641 AS trip_id, 2 AS stop_sequence
        UNION
        SELECT 3218 AS trip_id, 12 AS stop_sequence
        UNION
        SELECT 685 AS trip_id, 2 AS stop_sequence
    ) departing_stop ON
        -- If any of these trips passes by Nijmegen, this query should return
        -- `stop_time` records for Nijmegen `stop_id`s that include the same
        -- `trip_id`.
        departing_stop.trip_id = stop_time.trip_id
WHERE
    node_id = 21392 -- Nijmegen
    AND
    -- Trains only go in one direction, so let’s make sure we only include trips
    -- that have not already stopped at Nijmegen.
    stop_time.stop_sequence > departing_stop.stop_sequence
ORDER BY
    arrival_time

SELECT DISTINCT
    trip_id,
    stop_sequence,
    departure_time,
    name,
    platform,
    stop_id
FROM
    stop_time
  INNER JOIN
    stop ON
        stop_id = stop.id
LEFT JOIN
    transfer ON
        -- `stop_id`s for platforms 35 and 1b from the previous query
        from_stop_id IN (35027, 35029)
        AND
        to_stop_id = stop.id
WHERE
    departure_time
    BETWEEN
        -- Earliest arrival time in Nijmegen (from previous query) + 30 minutes
        DATE_ADD('2023-06-01 08:07:00', INTERVAL min_transfer_time SECOND)
        AND
        DATE_ADD('2023-06-01 08:07:00', INTERVAL 30 MINUTE)
ORDER BY
    departure_time

DROP PROCEDURE IF EXISTS GET_PATH_ADVICE;

-- SQL statements are normally delimited using a semicolon. We’ll temporarily
-- change the delimiter so we can use the semicolon character for statements
-- within our stored procedure.
DELIMITER $$

-- This creates a procedure GET_PATH_ADVICE() that accepts two parameters: a
-- path (as computed using the possible_path CTE) and a time of departure.
CREATE PROCEDURE GET_PATH_ADVICE(
    IN path VARCHAR(255),
    IN journey_departure_time DATETIME
)
BEGIN
    -- TODO: Declare variables so we can keep track of state

    WHILE LENGTH(path) > 0 DO
        -- TODO: Set values for current iteration

        IF step = 0 THEN
            -- TODO: Retrieve departures from first station
        ELSEIF step % 2 = 1 THEN
            -- TODO: Retrieve arrivals at intermediate and final stations
        ELSE
            -- TODO: Retrieve departures from intermediate stations
        END IF;

        SET step = step + 1;
    END WHILE;

    -- TODO: Generate output here
END $$

DELIMITER ;

-- Scalar values can be declared using the DECLARE keyword. We’ll use these
-- to keep track of where we are in the `path`.
DECLARE node VARCHAR(255);
DECLARE step SMALLINT DEFAULT 0;
-- We’re saving these for later.
DECLARE dest VARCHAR(255);
DECLARE earliest_arrival_time DATETIME;

-- Lists aren’t a thing in SQL, so if we want to store lists of things we’ll
-- need a temporary table.
CREATE TEMPORARY TABLE IF NOT EXISTS tmp_path_advice (
    stop_times        TEXT,
    cur_step          SMALLINT,
    cur_stop_id       INTEGER,
    cur_trip_id       INTEGER,
    cur_stop_sequence SMALLINT,
    first_datetime    DATETIME,
    cur_datetime      DATETIME,
    is_complete       BOOLEAN DEFAULT FALSE
);

-- Extract the last `node_id` from the `path` string.
SET dest = SUBSTRING_INDEX(SUBSTRING_INDEX(path, ' – ', -1), ' – ', 1);

-- The `node` and `path` variables keep track of the current state of
-- the algorithm. These only need to be set when a traveller reaches a
-- new station, i.e. when they depart from their origin and when they
-- arrive at another station.
IF step = 0 OR step % 2 = 1 THEN
    SET node = SUBSTRING_INDEX(path, ' – ', 1);
    SET path = SUBSTRING(path, LENGTH(node) + 3);
    SET node = TRIM(node);
END IF;

INSERT INTO
    tmp_path_advice
SELECT
    -- These are all initial values
    stop_time.id,   -- stop_times
    step,           -- cur_step
    stop_id,        -- cur_stop_id
    trip_id,        -- cur_trip_id
    stop_sequence,  -- cur_stop_sequence
    departure_time, -- first_datetime
    departure_time, -- cur_datetime
    FALSE           -- is_complete
FROM
    stop_time
INNER JOIN
    stop ON
        stop_id = stop.id
WHERE
    node_id = node
    AND
    departure_time BETWEEN
        -- Retrieve all trains that depart in the next 30 minutes
        journey_departure_time
        AND
        DATE_ADD(journey_departure_time, INTERVAL 30 MINUTE)
ORDER BY
    departure_time;

INSERT INTO
    tmp_path_advice
SELECT
    CONCAT(stop_times, ',', stop_time.id), -- stop_times
    step,                                  -- cur_step
    stop_id,                               -- cur_stop_id
    trip_id,                               -- cur_trip_id
    stop_sequence,                         -- cur_stop_sequence
    first_datetime,                        -- first_datetime
    stop_time.arrival_time,                -- cur_datetime
    node_id = dest                         -- is_complete
FROM
    tmp_path_advice
INNER JOIN
    stop_time ON
        -- The train has already stopped at stations with a lower
        -- stop_sequence, so we’ll need to ignore those.
        stop_time.trip_id = cur_trip_id
        AND
        stop_time.stop_sequence > cur_stop_sequence
INNER JOIN
    stop ON
        stop_id = stop.id
WHERE
    cur_step = step - 1
    AND
    stop_times IS NOT NULL
ORDER BY
    arrival_time;

INSERT INTO
    tmp_path_advice
SELECT DISTINCT
    CONCAT(stop_times, ',', stop_time.id), -- stop_times
    step AS step,                           -- cur_step
    stop_id,                                -- cur_stop_id
    trip_id,                                -- cur_trip_id
    stop_sequence,                          -- cur_stop_sequence
    first_datetime,                         -- first_datetime
    departure_time,                         -- cur_datetime
    node_id = dest                          -- is_complete
FROM
    tmp_path_advice
INNER JOIN
    stop ON
        node_id = node
INNER JOIN
    stop_time ON
        stop.id = stop_id
LEFT JOIN
    transfer ON
        from_stop_id = cur_stop_id
        AND
        to_stop_id = stop_id
WHERE
    cur_step = step - 1
    AND
    stop_times IS NOT NULL
    AND
    -- This is the Netherlands, so we’re not willing to consider
    -- “transfers” that take more than half an hour.
    departure_time
    BETWEEN
        DATE_ADD(cur_datetime, INTERVAL min_transfer_time SECOND)
        AND
        DATE_ADD(cur_datetime, INTERVAL 30 MINUTE)
ORDER BY
    departure_time;

-- Get rid of all partial trip advice. We only need the final results.
DELETE
    tmp_path_advice
FROM
    tmp_path_advice
WHERE
    is_complete = FALSE;

-- Determine the earliest possible time of arrival across all possible
-- journeys.
SET earliest_arrival_time = (
    SELECT MIN(cur_datetime)
    FROM tmp_path_advice
);

-- Discard all travel advice that takes more than 30 minutes longer than the
-- fastest possible journey.
DELETE
    tmp_path_advice
FROM
    tmp_path_advice
WHERE
    cur_datetime > DATE_ADD(earliest_arrival_time, INTERVAL 30 MINUTE);

-- This SELECT query generates the human-readable output of this procedure.
SELECT DISTINCT
    SUBSTRING(SHA1(stop_times), 1, 8) AS journey,
    IF(sequence % 2 = 1, 'Departure', 'Arrival') AS type,
    TIME(IF(sequence % 2 = 1, departure_time, arrival_time)) AS time,
    stop.name AS station,
    stop.platform,
    CONCAT(agency.name, ' ', trip.long_name) AS train_type,
    trip.headsign,
    first_datetime AS journey_departure,
    cur_datetime AS journey_arrival
FROM
    tmp_path_advice
CROSS JOIN
    -- `stop_times` is a comma-separated string. By converting it to a JSON
    -- list we can iterate over it and extract the key (`sequence`) and
    -- `value` of each element.
    JSON_TABLE (
        CONCAT('[', stop_times, ']'),
        '$[*]'
        COLUMNS (
            sequence FOR ORDINALITY,
            value INT PATH '$'
        )
    ) result
INNER JOIN
    stop_time ON
        result.value = stop_time.id
INNER JOIN
    stop ON
        stop_id = stop.id
INNER JOIN
    trip ON
        trip_id = trip.id
INNER JOIN
    route ON
        route_id = route.id
INNER JOIN
  agency ON
      agency_id = agency.id
WHERE
    is_complete
ORDER BY
    -- We want to arrive at our destination as early as possible. When
    -- multiple options have the same arrival time, prefer options that take
    -- less time, i.e. have a later time of departure.
    cur_datetime,
    first_datetime DESC,
    journey,  -- Used to keep the rows for each journey together
    sequence; -- Keep rows within journeys in the right order

DROP PROCEDURE IF EXISTS GET_PATH_ADVICE;

-- SQL statements are normally delimited using a semicolon. We’ll temporarily
-- change the delimiter so we can use the semicolon character for statements
-- within our stored procedure.
DELIMITER $$

-- This creates a procedure GET_PATH_ADVICE() that accepts two parameters: a
-- path (as computed using the possible_path CTE) and the time of departure.
CREATE PROCEDURE GET_PATH_ADVICE(
    IN path VARCHAR(255),
    IN journey_departure_time DATETIME
)
BEGIN
    -- We’ll start by declaring some variables.

    -- Scalar values can be declared using the DECLARE keyword. We’ll use these
    -- to keep track of where we are in the `path`.
    DECLARE node VARCHAR(255);
    DECLARE step SMALLINT DEFAULT 0;
    -- We’re saving these for later.
    DECLARE dest VARCHAR(255);
    DECLARE earliest_arrival_time DATETIME;

    -- Lists aren’t a thing in SQL, so if we want to store lists of things we’ll
    -- need a temporary table.
    CREATE TEMPORARY TABLE IF NOT EXISTS tmp_path_advice (
        stop_times       TEXT,
        cur_step          SMALLINT,
        cur_stop_id       INTEGER,
        cur_trip_id       INTEGER,
        cur_stop_sequence SMALLINT,
        first_datetime    DATETIME,
        cur_datetime      DATETIME,
        is_complete       BOOLEAN DEFAULT FALSE
    );

    -- Extract the last `node_id` from the `path` string.
    SET dest = SUBSTRING_INDEX(SUBSTRING_INDEX(path, ' – ', -1), ' – ', 1);

    -- Iterate through the given path until we’ve reached the end.
    WHILE LENGTH(path) > 0 DO
        -- The `node` and `path` variables keep track of the current state of
        -- the algorithm. These only need to be set when a traveller reaches a
        -- new station, i.e. when they depart from their origin and when they
        -- arrive at another station.
        IF step = 0 OR step % 2 = 1 THEN
            SET node = SUBSTRING_INDEX(path, ' – ', 1);
            SET path = SUBSTRING(path, LENGTH(node) + 3);
            SET node = TRIM(node);
        END IF;

        -- The first leg of the journey is special, because we do not start at a
        -- specific platform and thus also do not have to take transfer times
        -- into account.
        IF step = 0 THEN
            INSERT INTO
                tmp_path_advice
            SELECT
                -- These are all initial values
                stop_time.id,   -- stop_times
                step,           -- cur_step
                stop_id,        -- cur_stop_id
                trip_id,        -- cur_trip_id
                stop_sequence,  -- cur_stop_sequence
                departure_time, -- first_datetime
                departure_time, -- cur_datetime
                FALSE           -- is_complete
            FROM
                stop_time
            INNER JOIN
                stop ON
                    stop_id = stop.id
            WHERE
                node_id = node
                AND
                departure_time BETWEEN
                    -- Retrieve all trains that depart in the next 30 minutes
                    journey_departure_time
                    AND
                    DATE_ADD(journey_departure_time, INTERVAL 30 MINUTE)
            ORDER BY
                departure_time;
        -- Arrivals at new stations are handled as part of odd steps.
        ELSEIF step % 2 = 1 THEN
            INSERT INTO
                tmp_path_advice
            SELECT
                CONCAT(stop_times, ',', stop_time.id), -- stop_times
                step,                                  -- cur_step
                stop_id,                               -- cur_stop_id
                trip_id,                               -- cur_trip_id
                stop_sequence,                         -- cur_stop_sequence
                first_datetime,                        -- first_datetime
                stop_time.arrival_time,                -- cur_datetime
                node_id = dest                         -- is_complete
            FROM
                tmp_path_advice
            INNER JOIN
                stop_time ON
                    -- The train has already stopped at stations with a lower
                    -- stop_sequence, so we’ll need to ignore those.
                    stop_time.trip_id = cur_trip_id
                    AND
                    stop_time.stop_sequence > cur_stop_sequence
            INNER JOIN
                stop ON
                    stop_id = stop.id
            WHERE
                cur_step = step - 1
                AND
                stop_times IS NOT NULL
            ORDER BY
                arrival_time;
        ELSE
            -- Departures from stations are handled as part of even steps.
            INSERT INTO
                tmp_path_advice
            SELECT DISTINCT
                CONCAT(stop_times, ',', stop_time.id), -- stop_times
                step AS step,                          -- cur_step
                stop_id,                               -- cur_stop_id
                trip_id,                               -- cur_trip_id
                stop_sequence,                         -- cur_stop_sequence
                first_datetime,                        -- first_datetime
                departure_time,                        -- cur_datetime
                node_id = dest                         -- is_complete
            FROM
                tmp_path_advice
            INNER JOIN
                stop ON
                    node_id = node
            INNER JOIN
                stop_time ON
                    stop.id = stop_id
            LEFT JOIN
                transfer ON
                    from_stop_id = cur_stop_id
                    AND
                    to_stop_id = stop_id
            WHERE
                cur_step = step - 1
                AND
                stop_times IS NOT NULL
                AND
                -- This is the Netherlands, so we’re not willing to consider
                -- “transfers” that take more than half an hour.
                departure_time
                BETWEEN
                    DATE_ADD(cur_datetime, INTERVAL min_transfer_time SECOND)
                    AND
                    DATE_ADD(cur_datetime, INTERVAL 30 MINUTE)
            ORDER BY
                departure_time;
        END IF;

        SET step = step + 1;
    END WHILE;

    -- Get rid of all partial trip advice. We only need the final results.
    DELETE
        tmp_path_advice
    FROM
        tmp_path_advice
    WHERE
        is_complete = FALSE;

    -- Determine the earliest possible time of arrival across all possible
    -- journeys.
    SET earliest_arrival_time = (
        SELECT MIN(cur_datetime)
        FROM tmp_path_advice
    );

    -- Discard all travel advice that takes more than 30 minutes longer than the
    -- fastest possible journey.
    DELETE
        tmp_path_advice
    FROM
        tmp_path_advice
    WHERE
        cur_datetime > DATE_ADD(earliest_arrival_time, INTERVAL 30 MINUTE);

    -- This SELECT query generates the human-readable output of this procedure.
    SELECT DISTINCT
        SUBSTRING(SHA1(stop_times), 1, 8) AS journey,
        IF(sequence % 2 = 1, 'Departure', 'Arrival') AS type,
        TIME(IF(sequence % 2 = 1, departure_time, arrival_time)) AS time,
        stop.name AS station,
        stop.platform,
        CONCAT(agency.name, ' ', trip.long_name) AS train_type,
        trip.headsign,
        first_datetime AS journey_departure,
        cur_datetime AS journey_arrival
    FROM
        tmp_path_advice
    CROSS JOIN
        -- `stop_times` is a comma-separated string. By converting it to a JSON
        -- list we can iterate over it and extract the key (`sequence`) and
        -- `value` of each element.
        JSON_TABLE (
            CONCAT('[', stop_times, ']'),
            '$[*]'
            COLUMNS (
                sequence FOR ORDINALITY,
                value INT PATH '$'
            )
        ) result
    INNER JOIN
        stop_time ON
            result.value = stop_time.id
    INNER JOIN
        stop ON
            stop_id = stop.id
    INNER JOIN
        trip ON
            trip_id = trip.id
    INNER JOIN
        route ON
            route_id = route.id
    INNER JOIN
      agency ON
          agency_id = agency.id
    WHERE
        is_complete
    ORDER BY
        -- We want to arrive at our destination as early as possible. When
        -- multiple options have the same arrival time, prefer options that take
        -- less time, i.e. have a later time of departure.
        cur_datetime,
        first_datetime DESC,
        journey,  -- Used to keep the rows for each journey together
        sequence; -- Keep rows within journeys in the right order

    -- Now that we’ve generated the output we don’t need this any more!
    DROP TEMPORARY TABLE IF EXISTS tmp_path_advice;
END $$

DELIMITER ;

CALL GET_PATH_ADVICE('21601 – 21392 – 21680 – 21473', '2023-06-01 08:00:00');

DROP PROCEDURE IF EXISTS PLAN_JOURNEY;

DELIMITER $$

CREATE PROCEDURE PLAN_JOURNEY(
    IN origin VARCHAR(255),            -- Station name
    IN destination VARCHAR(255),       -- Station name
    IN journey_departure_time DATETIME -- Just a datetime
)
BEGIN
    -- ---------------------------------------------------------------------- --
    -- VARIABLE DECLARATIONS                                                  --
    -- ---------------------------------------------------------------------- --
    DECLARE orig_node INTEGER;
    DECLARE dest_node INTEGER;
    DECLARE done BOOLEAN;
    DECLARE path VARCHAR(255);

    -- These variables are used for the algorithm that looks up departures and
    -- arrivals in `stop_time` for each `path`
    DECLARE node VARCHAR(255);
    DECLARE step SMALLINT DEFAULT 0;
    DECLARE dest VARCHAR(255);
    DECLARE earliest_arrival_time DATETIME;

    -- By declaring a cursor we can iterate over the results of this common
    -- table expression.
    DECLARE best_paths_cursor CURSOR FOR
        WITH RECURSIVE
            allowed_node (node_id) AS (
                SELECT DISTINCT
                    node_id
                FROM
                    stop
                INNER JOIN (
                    SELECT
                        -- 0.25 latitude and 0.20 longitude should be roughly
                        -- equivalent to 22 kilometres in the Netherlands
                        MIN(latitude)  - 0.25 AS min_lat,
                        MAX(latitude)  + 0.25 AS max_lat,
                        MIN(longitude) - 0.25 AS min_lon,
                        MAX(longitude) + 0.25 AS max_lon
                    FROM
                        stop
                    WHERE
                        node_id IN (
                            orig_node,
                            dest_node
                        )
                ) bounding_box ON
                    latitude BETWEEN min_lat AND max_lat
                    AND
                    longitude BETWEEN min_lon AND max_lon
                    AND
                    -- This is a stupid hack to remove anything that’s not
                    -- clearly a train station, as bus/tram/metro stops in this
                    -- dataset tend to have names that include both a place and
                    -- a street name, e.g. “Amsterdam, Rokin”.
                    name NOT LIKE '%,%'
            ),
            possible_path (nodes, transfers, stops, distance, current_node) AS (
                -- Base case
                SELECT
                    CONCAT(' – ', CAST(from_node_id AS CHAR(255)), ' – '),
                    0,
                    stops,
                    distance,
                    to_node_id
                FROM
                    edge
                WHERE
                    from_node_id = orig_node
                    AND
                    to_node_id IN (SELECT node_id FROM allowed_node)

                UNION ALL

                -- Recursive case
                SELECT
                    CONCAT(nodes, from_node_id, ' – '),
                    transfers + 1,
                    possible_path.stops + edge.stops,
                    possible_path.distance + edge.distance,
                    to_node_id
                FROM
                    possible_path
                INNER JOIN
                    edge ON
                        current_node = from_node_id
                WHERE
                    -- Only consider nodes within that rectangular bounding box
                    -- that we discussed earlier.
                    to_node_id IN (SELECT node_id FROM allowed_node)
                    AND
                    -- Used to detect cycles within a possible path. It makes no
                    -- sense to visit the same station twice!
                    nodes NOT LIKE CONCAT('% – ', to_node_id, ' – %')
                    AND
                    -- This basically sets the number of “layers” that our
                    -- pathfinding algorithm is allowed to explore. With
                    -- transfers set to 3, the execution time is roughly a
                    -- second on my machine. With 4 it’s about 20 seconds. I
                    -- haven’t tried to set it to 5, but it’ll probably take
                    -- *very* long to complete.
                    transfers < 3
            )
        SELECT DISTINCT
            -- The SUBSTRING() is used to remove the leading “ – ” that we added
            -- in the base case.
            SUBSTRING(CONCAT(nodes, current_node), 4) AS path
        FROM
            possible_path
        WHERE
            current_node = dest_node
        ORDER BY
            -- This seems to work reasonably well as a way to score different
            -- paths. The basic idea is that direct connections (fewer
            -- transfers) are preferred over journeys with many transfers, and
            -- intercity/express trains (fewer stops) are preferred over slower,
            -- local trains (many stops).
            transfers * stops,
            distance
        LIMIT
            5; -- Completely arbitrary limit

    -- Make sure that algorithm terminates
    DECLARE CONTINUE HANDLER FOR NOT FOUND
        SET done = TRUE;

    -- ---------------------------------------------------------------------- --
    -- INPUT VALIDATION                                                       --
    -- ---------------------------------------------------------------------- --

    -- Retrieve `node.id`s for departure and arrival stations
    SET orig_node = (
        SELECT
            id
        FROM
            node
        WHERE
            name COLLATE utf8mb4_unicode_ci = origin
    );
    SET dest_node = (
        SELECT
            id
        FROM
            node
        WHERE
            name COLLATE utf8mb4_unicode_ci = destination
    );

    -- Abort procedure with a descriptive message if something is wrong with the
    -- input.
    IF orig_node IS NULL THEN
        SIGNAL SQLSTATE '02404'
            SET MESSAGE_TEXT =  'Origin node not found.';
    END IF;

    IF dest_node IS NULL THEN
        SIGNAL SQLSTATE '02404'
            SET MESSAGE_TEXT =  'Destination node not found.';
    END IF;

    IF origin = destination THEN
        SIGNAL SQLSTATE '02400'
            SET MESSAGE_TEXT = 'Origin and destination are the same.';
    END IF;

    -- ---------------------------------------------------------------------- --
    -- GENERATE ADVICE                                                        --
    -- ---------------------------------------------------------------------- --

    -- This table will be used to store the final results
    CREATE TEMPORARY TABLE IF NOT EXISTS travel_advice (
        journey    VARCHAR(255),
        type       VARCHAR(255),
        time       DATETIME,
        station    VARCHAR(255),
        platform   VARCHAR(255),
        train_type VARCHAR(255),
        headsign   VARCHAR(255),
        departure  DATETIME,
        arrival    DATETIME,

        PRIMARY KEY (journey, time)
    );

    OPEN best_paths_cursor;

    read_loop: LOOP
        -- We look up timetables for each `possible_path`. Intermediate results
        -- are stored per path in `tmp_path_advice`.
        CREATE TEMPORARY TABLE IF NOT EXISTS tmp_path_advice (
            stop_times        TEXT,
            cur_step          SMALLINT,
            cur_stop_id       INTEGER,
            cur_trip_id       INTEGER,
            cur_stop_sequence SMALLINT,
            first_datetime    DATETIME,
            cur_datetime      DATETIME,
            is_complete       BOOLEAN DEFAULT FALSE
        );

        FETCH best_paths_cursor INTO path;

        IF done THEN
            LEAVE read_loop;
        END IF;

        SET step = 0;
        SET earliest_arrival_time = NULL;
        -- Extract the last `node_id` from the `path` string.
        SET dest = SUBSTRING_INDEX(SUBSTRING_INDEX(path, ' – ', -1), ' – ', 1);

        WHILE LENGTH(path) > 0 DO
                -- The `node` and `path` variables keep track of the current
                -- state of the algorithm. These only need to be set when a
                -- traveller reaches a new station, i.e. when they depart from
                -- their origin and when they arrive at another station.
                IF step = 0 OR step % 2 = 1 THEN
                    SET node = SUBSTRING_INDEX(path, ' – ', 1);
                    SET path = SUBSTRING(path, LENGTH(node) + 3);
                    SET node = TRIM(node);
                END IF;

                -- The first leg of the journey is special, because we do not
                -- start at a specific platform and thus also do not have to
                -- take transfer times into account.
                IF step = 0 THEN
                    INSERT INTO
                        tmp_path_advice
                    SELECT
                        -- These are all initial values
                        stop_time.id,   -- stop_times
                        step,           -- cur_step
                        stop_id,        -- cur_stop_id
                        trip_id,        -- cur_trip_id
                        stop_sequence,  -- cur_stop_sequence
                        departure_time, -- first_datetime
                        departure_time, -- cur_datetime
                        FALSE           -- is_complete
                    FROM
                        stop_time
                    INNER JOIN
                        stop ON
                            stop_id = stop.id
                    WHERE
                        node_id = node
                        AND
                        departure_time BETWEEN
                            -- Retrieve all trains that depart in the next 30
                            -- minutes
                            journey_departure_time
                            AND
                            DATE_ADD(journey_departure_time, INTERVAL 30 MINUTE)
                    ORDER BY
                        departure_time;
                -- Arrivals at new stations are handled as part of odd steps.
                ELSEIF step % 2 = 1 THEN
                    INSERT INTO
                        tmp_path_advice
                    SELECT
                        CONCAT(stop_times, ',', stop_time.id), -- stop_times
                        step,                                  -- cur_step
                        stop_id,                               -- cur_stop_id
                        trip_id,                               -- cur_trip_id
                        stop_sequence,                         -- cur_stop_sequ…
                        first_datetime,                        -- first_datetim…
                        stop_time.arrival_time,                -- cur_datetime
                        node_id = dest                         -- is_complete
                    FROM
                        tmp_path_advice
                    INNER JOIN
                        stop_time ON
                            -- The train has already stopped at stations with a
                            -- lower stop_sequence, so we’ll need to ignore
                            -- those.
                            stop_time.trip_id = cur_trip_id
                            AND
                            stop_time.stop_sequence > cur_stop_sequence
                    INNER JOIN
                        stop ON
                            stop_id = stop.id
                    WHERE
                        cur_step = step - 1
                        AND
                        stop_times IS NOT NULL
                    ORDER BY
                        arrival_time;
                ELSE
                    -- Departures from stations are handled as part of even
                    -- steps.
                    INSERT INTO
                        tmp_path_advice
                    SELECT DISTINCT
                        CONCAT(stop_times, ',', stop_time.id), -- stop_times
                        step AS step,                          -- cur_step
                        stop_id,                               -- cur_stop_id
                        trip_id,                               -- cur_trip_id
                        stop_sequence,                         -- cur_stop_sequ…
                        first_datetime,                        -- first_datetim…
                        departure_time,                        -- cur_datetime
                        node_id = dest                         -- is_complete
                    FROM
                        tmp_path_advice
                    INNER JOIN
                        stop ON
                            node_id = node
                    INNER JOIN
                        stop_time ON
                            stop.id = stop_id
                    LEFT JOIN
                        transfer ON
                            from_stop_id = cur_stop_id
                            AND
                            to_stop_id = stop_id
                    WHERE
                        cur_step = step - 1
                        AND
                        stop_times IS NOT NULL
                        AND
                        -- This is the Netherlands, so we’re not willing to
                        -- consider “transfers” that take more than half an
                        -- hour.
                        departure_time
                        BETWEEN
                            DATE_ADD(
                                cur_datetime,
                                INTERVAL min_transfer_time SECOND
                            )
                            AND
                            DATE_ADD(cur_datetime, INTERVAL 30 MINUTE)
                    ORDER BY
                        departure_time;
                END IF;

                SET step = step + 1;
            END WHILE;

            -- Get rid of all partial trip advice. We only need the final
            -- results.
            DELETE
                tmp_path_advice
            FROM
                tmp_path_advice
            WHERE
                is_complete = FALSE;

            -- Determine the earliest possible time of arrival across all
            -- possible journeys.
            SET earliest_arrival_time = (
                SELECT MIN(cur_datetime)
                FROM tmp_path_advice
            );

            -- Discard all travel advice that takes more than 30 minutes longer
            -- than the fastest possible journey.
            DELETE
                tmp_path_advice
            FROM
                tmp_path_advice
            WHERE
                cur_datetime > DATE_ADD(
                    earliest_arrival_time,
                    INTERVAL 30 MINUTE
                );

            -- This SELECT query generates the human-readable output of this
            -- procedure.
            INSERT IGNORE INTO
                travel_advice
            SELECT DISTINCT
                SUBSTRING(SHA1(stop_times), 1, 8) AS journey,
                IF(sequence % 2 = 1, 'Departure', 'Arrival') AS type,
                IF(sequence % 2 = 1, departure_time, arrival_time) AS time,
                stop.name AS station,
                stop.platform,
                CONCAT(agency.name, ' ', trip.long_name) AS train_type,
                trip.headsign,
                first_datetime AS journey_departure,
                cur_datetime AS journey_arrival
            FROM
                tmp_path_advice
            CROSS JOIN
                -- `stop_times` is a comma-separated string. By converting it
                -- to a JSON list we can iterate over it and extract the key
                -- (`sequence`) and `value` of each element.
                JSON_TABLE (
                    CONCAT('[', stop_times, ']'),
                    '$[*]'
                    COLUMNS (
                        sequence FOR ORDINALITY,
                        value INT PATH '$'
                    )
                ) result
            INNER JOIN
                stop_time ON
                    result.value = stop_time.id
            INNER JOIN
                stop ON
                    stop_id = stop.id
            INNER JOIN
                trip ON
                    trip_id = trip.id
            INNER JOIN
                route ON
                    route_id = route.id
            INNER JOIN
              agency ON
                  agency_id = agency.id
            WHERE
                is_complete
            ORDER BY
                -- We want to arrive at our destination as early as possible.
                -- When multiple options have the same arrival time, prefer
                -- options that take less time, i.e. have a later time of
                -- departure.
                cur_datetime,
                first_datetime DESC,
                journey,  -- Used to keep the rows for each journey together
                sequence; -- Keep rows within journeys in the right order

        DROP TEMPORARY TABLE IF EXISTS tmp_path_advice;

    END LOOP;

    CLOSE best_paths_cursor;

    -- ---------------------------------------------------------------------- --
    -- GENERATE OUTPUT                                                        --
    -- ---------------------------------------------------------------------- --

    SELECT DISTINCT
        travel_advice.journey,
        type,
        TIME(time) AS time, -- “Timmeh!”
        station,
        platform,
        train_type,
        headsign,
        SUBSTRING(TIMEDIFF(arrival, departure), 1, 5) AS duration
    FROM
        travel_advice
    INNER JOIN (
        SELECT
            journey,
            COUNT(*) / 2 - 1 AS num_transfers
        FROM
            travel_advice
        GROUP BY
            journey
    ) journey_row_count
        USING (journey)
    WHERE
        -- We’re still not interested in alternative suggestions that are
        -- significantly worse than the best option
        arrival <= DATE_ADD(earliest_arrival_time, INTERVAL 30 MINUTE)
    ORDER BY
        arrival,        -- Arrive as early as possible
        num_transfers,  -- Fewer transfers are better
        departure DESC, -- Depart as late as possible
        journey;        -- Group departures and arrivals for each journey

    DROP TEMPORARY TABLE IF EXISTS travel_advice;
END $$

DELIMITER ;

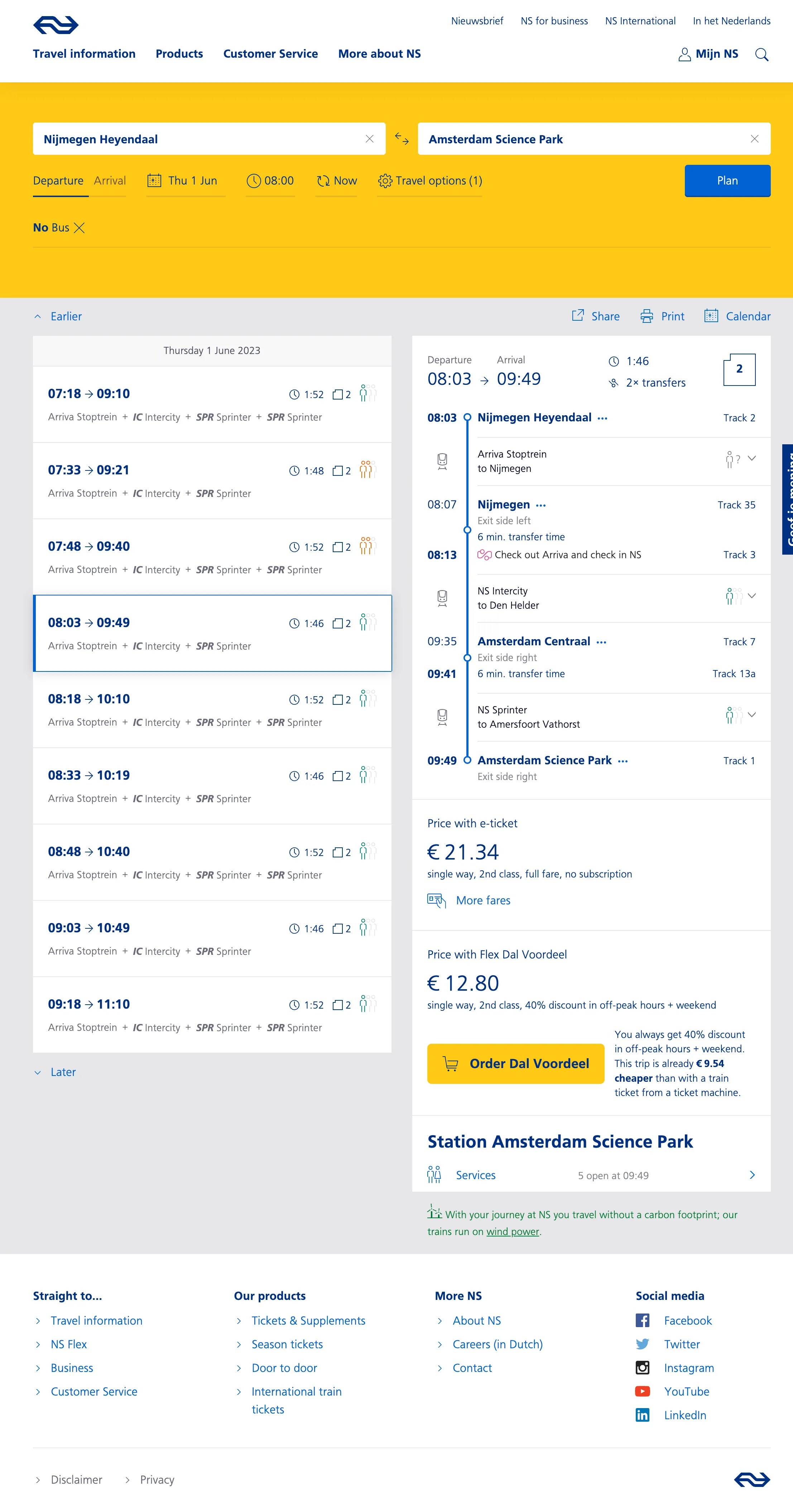

CALL PLAN_JOURNEY(
    'Nijmegen Heyendaal',
    'Amsterdam Science Park',
    '2023-06-01 08:00:00'
);
